Brief Introduction

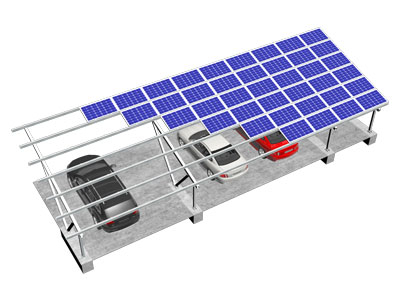

LRac Carport System II is a pre-assembled ground solar mounting system which is ideal for large commercial and utility-scale solar PV projects. The system has been developed for various photovoltaic modules and will be customized to fit into the parking lot or designed according to specific requirements. The Carport System can protect the cars to avoid damage from sunshine, wind, rain water, and snow. Linko Solar’s engineers continue to optimize the design of system, the quality of product and service, and also provide the best solution for your Solar Carport System.
Technical Parameters
| Installation Site | Open terrain – ground mount |
| Ground Clearance | 2000mm |
| Installation Angle | 5-15° |
| Wind Load | 45m/s |
| Snow Load | 1.2KN/m2 |
| PV Modules | Framed, unframed |
| Module Orientation | Portrait or landscape |
| Standards |
AS/NZS 1170 |
| DIN 1055 | |
| JIS C 8955：2017 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Materials | Al6005-T5 |
| Fasten Parts | SUS304 |
| Small Components | Al6005-T5 |
| Color | Silvery or according to customer requirements |
| Warranty | 10 years |
Components List
|
|
|
|
| Wide End Clamp Kit | U25 Inter Clamp Kit | C Clamp Kit | Wide Beam 160 |
|
|
|
|
| Conical Symmetric Cross Beam 135 |
Waterproof for cross Beam 135 |
Anchor Plate | Square Tube |
|
|||
| Splice for Conical Symmetric Cross Beam 135 |
|
|
Installation Guide
1. Make concrete bases with anchor plate according to the solution drawing;
2. Fasten Square tubes to the anchor plate on concrete bases;
3. Install the Conical Symmetric Cross Beam 135;
4. Install Wide Beam 160 with C Clamp Kit;
5. Install panels onto Beams with Wide End Clamp Kits and U25 Inter Clamp Kits;
6. The installation is complete.
Advantages
Customized Solution Design case by case, making a good utilization of ground resource and pursuit for easy and quick installation.
Save Installation Time and Labor Cost on Site With installation manuals and system solution, the construction on site will be simple. Less construction time directly reduces project costs.
High Waterproof The special waterproof conforms to the structure of system, which make the performance Stronger
Compatible to Varied Solar Modules With LRac module clamps, the system compatible with most kinds of framed and frame and frameless modules.
