Brief Introduction

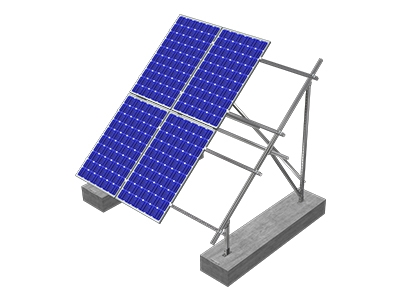

LRac Ground Terrace I fits for large scale rooftop and ground site PV installation. Working with concrete bases, columns and/or ground screws to fix the system, LRac GT I makes your installation convenient and cost effective to meet your specific requirements. LRac GT I delivers a elegant appearance without damage to your rooftop and keep reliable structural strength when fixed onto the concrete bases or ground screws.
Technical Parameters
| Installation Site | Open terrain – ground mount |
| Ground Clearance | 500-2000mm |
| Installation Angle | 0-60° |
| Wind Load | 60m/s |
| Snow Load | 1.6KN/m2 |
| PV Modules | Framed, unframed |
| Module Orientation | Portrait or landscape |
|
Standards |
AS/NZS 1170 |
| DIN 1055 | |
| JIS C 8955：2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Materials | Steel Q235B(Hot-Dip Galvanized) |
| Fasten Parts | SUS304 |
| Small Components | Al6005-T5 |
| Color | Silvery or according to customer requirements |
| Warranty | 10 years |
Components List
|
|
|
|
| End Clamp Kit | Inter Clamp Kit | Beam | Beam Connector |
|
|
|
|
| Side Beam | Triangle Jointer | Front Support | Back Support |
|
|
|
|
| Inclined Support | Back Side Support | Adjustable Base |
|
Installation Guide
-
Make concrete bases with embedded bolts according to the solution drawing;
-
Fasten Adjustable Bases to the embedded bolts on concrete bases;
-
Connect Front Supports and Back Supports to the Side Beams;
-
Connect the assembled Front Supports, Back Supports and Side Beams to Adjustable Bases, and then install Inclined Support;
-
Install Beams;
-
Install modules onto Beams with End Clamp Kits and U20 Inter Clamp Kits;
-
The installation is complete.
Advantages
-
Easy Installation: The practical and economical design of LRac Ground Terrace I makes it time and cost effective;
-
Versatile Application: Can be installed on various existing rooftop and open field, highly customized;
-
Good Compatibility: System is compatible with most of the major framed and frameless PV panels in the market, align panels for optimization;
-
High Quality: Optimized structure design; Supreme corrosion resistance ability;
-
10-Year Guarantee: Strict quality control over the materials and finished products.
