LRac Ground Terrace II

Brief Introduction

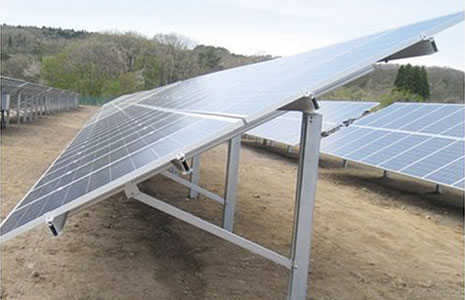

LRac Ground Terrace II is a highly pre-assembled ground mounting system can be applied to large commercial and utility scale installations, totally aluminium with good corrosion-resistant capability. With the efficient structure design, LRac Ground Terrace II saves installation time and minimizes costly labour for developers, operators and installers when delivering large scale projects.

Technical Parameters

Installation Site Open terrain – ground mount
Ground Clearance 500-2000mm
Installation Angle 0-60°
Wind Load 60m/s
Snow Load 1.6KN/m2
PV Modules Framed, unframed
Module Orientation Portrait or landscape
Standards

AS/NZS 1170
DIN 1055
JIS C 8955:2017
International   Building Code IBC 2009
California   Building Code CBC 2010
Materials Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
Fasten Parts SUS304
Small Components Al6005-T5
Color Silvery or according to customer requirements
Warranty 10 years

Components List


End Clamp Kit Inter Clamp Kit C Clamp Kit Rail
立柱底座A - 副本.jpg 立柱底座B.jpg
Rail Splice Kit

GT II Pre-assembled Support

Post Plate A Post Plate B


U Post


Installation Guide

  1. Install U Post

  2. Install Post Plate

  3. Install the Pre-assembled GT II Support

  4. Install Rail

  5. Install Solar Panels

  6. Complete



Advantages

  1. Can quickly assemble with minimal components while maintain a strong structure, highly pre-assembled design minimizes labor cost, and don't need onsite cutting or drilling in our beams or rails.

  2. Flexible module layout, can be applied to both vertical and landscape.

  3. By using the customized U-shaped posts, GT II can be applied to various soil conditions, and the U-shaped beam maximizes the strength of whole structure.

  4. Single supporting arm and double supporting arms are both available. The efficient structural design minimizes material usage making it economical solution.

  5. Strict QC over all component and finished products ensure the reliability and strength with a longer service life.
