LRac Ground Terrace III

Brief Introduction

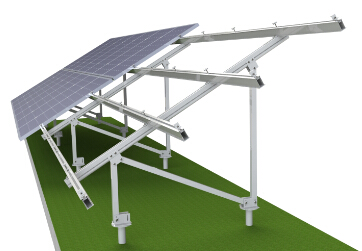

LRac Ground Terrace III(GT III) is a ground solar PV mounting system developed from GT II. GT III has higher wind and snow resistance and optimized structural design, while it is also going to be pre-assembled before shipping, all of which facilitate faster and cost-effective installation. GT III is ideal for middle-large solar projects which have higher requirements for corrosion resistance and structural strength.

Technical Parameters

Installation Site Open terrain – ground mount
Foundation Concrete bases,Ground screws
Installation Angle 5-60°
Wind Load 80m/s
Snow Load 1.6KN/m2
PV Modules Framed, unframed
Module Orientation Portrait or landscape
Standards AS/NZS 1170

DIN 1055

JIS C 8955:2011

International   Building Code IBC 2009

California   Building Code CBC 2010
Materials Al6005-T5(Anodized)
Fasten Parts SUS304
Small Components Al6005-T5(Anodized)
Color Silvery or according to customer requirements
Warranty 10 years


Components List

Wide End Clamp Kit U27 Inter Clamp Kit C Clamp Kit Beam
6.jpg 7.jpg 8.jpg
Splice for Beam

GT III Pre-Assembled

Supports A

GT III Pre-Assembled

Supports B

GT III Anchor Plate Kit

Ground Screw

Installation Guide

  1. Locate the proper position for piling by wooden stakes.

  2. Remove the stakes at the positions and pile Ground Screw.

  3. Install GT III Anchor Plates

  4. Install GT III Pre-Assembled Supports

  5. Install Rails

  6. Installation the panels

  7. The installation is complete.


Advantages

  1. Can quickly assemble with minimal components while maintain a strong structure, highly pre-assembled design minimizes labor cost, and don't need onsite cutting or drilling in our beams or rails.

  2. Flexible module layout, can be applied to both vertical and landscape.

  3. Strict QC over all component and finished products ensure the reliability and strength with a longer service life.

  4. The compact structural design ensures the reasonable utilization of the space of containers.
