LRac Ground Terrace IV

Brief Introduction

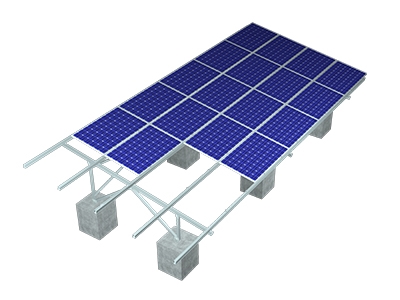

LRac Ground Terrace GT IV is a highly pre-assembled ground mounting system, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites, and is mainly applied to medium to large scale solar PV projects. Patented and certified system design ensure projects safety and quick installation

Technical Parameters

Installation Site Open terrain – ground mount
Foundation Concrete bases,Ground screws
Installation Angle 0-60°
Wind Load 60m/s
Snow Load 1.6KN/m2
PV Modules Framed, unframed
Module Orientation Portrait or landscape
Standards AS/NZS 1170

DIN 1055

JIS C 8955:2017

International   Building Code IBC 2009

California   Building Code CBC 2010
Materials Al6005-T5(Anodized)
Fasten Parts SUS304
Small Components Al6005-T5(Anodized)
Color Silvery or according to customer requirements
Warranty 10 years


Components List

Wide End Clamp Kit U25 Inter Clamp Kit C Clamp Kit Cross Beam 85
6.jpg 7.jpg 8.jpg
Splice for Cross Beam 85

GT IV Pre-Assembled

Supports

GT IV Pre-Assembled

Supports B

Corrugated T Anchor Plate Kit
9.jpg 10.jpg

Angle aluminum Ground Screw


Installation Guide

  1. Locate the proper position for piling by wooden stakes.

  2. Remove the stakes at the positions and pile Ground Screw.

  3. Install Corrugated T Anchor Plates

  4. Install GT IV Pre-Assembled Supports

  5. Install Rails

  6. Installation the panels

  7. The installation is complete.



Advantages

Pre-assembled Components Save Onsite Installation Time Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.


Flexibility and Adjustability   The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.


Quick Modular Kit Fixation   Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.


No Drill on Portrait Beam   It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity
