Brief Introduction

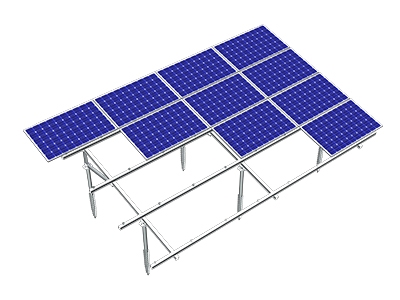

LRac Ground Terrace GT V is a highly pre-assembled ground mounting system, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites, and is mainly applied to medium to large scale solar PV projects. Patented and certified system design ensure projects safety and quick installation.
Technical Parameters
| Installation Site | Open terrain – ground mount |
| Foundation | Concrete bases,Ground screws |
| Installation Angle | 0-60° |
| Wind Load | 60m/s |
| Snow Load | 1.6KN/m2 |
| PV Modules | Framed, unframed |
| Module Orientation | Portrait or landscape |
| Standards | AS/NZS 1170 |
| |
DIN 1055 |
| |
JIS C 8955：2017 |
| |
International Building Code IBC 2009 |
| |
California Building Code CBC 2010 |
| Materials | Al6005-T5(Anodized) |
| Fasten Parts | SUS304 |
| Small Components | Al6005-T5(Anodized) |
| Color | Silvery or according to customer requirements |
| Warranty | 10 years |
Components List
|
|
|
|
| Wide End Clamp Kit | U25 Inter Clamp Kit | C Clamp Kit | Cross Beam 85 |
|
|
|
|
| Splice for Cross Beam 85 |
GT V Pre-Assembled Supports |
GT V Pre-Assembled Supports B |
Corrugated T Anchor Plate Kit |
|
|
|
|
| T Anchor Plate | Ground Screw |
Installation Guide
-
Locate the proper position for piling by wooden stakes.
-
Remove the stakes at the positions and pile Ground Screw.
-
Install Corrugated T Anchor Plates
-
Install GT V Pre-Assembled Supports
-
Install Rails
-
Installation the panels
-
The installation is complete.
Advantages
Pre-assembled Components Save Onsite Installation Time Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
Flexibility and Adjustability The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
Quick Modular Kit Fixation Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.
No Front Post Design Saving material cost without front post design, suitable for low ground clearance projects.
