Brief Introduction

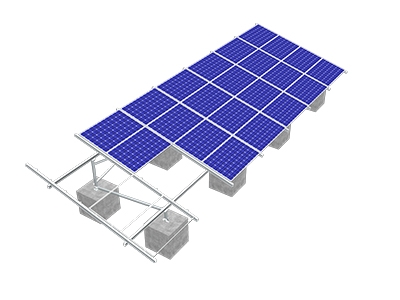

LRac Ground Terrace GT Ⅵ suits for medium to large scale solar PV projects. With optimized structure design, GT Ⅵ minimize the quantity of beam to save cost based on structure strength guarantee. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites. Patented and certified system design ensure projects safety and quick installation.
Technical Parameters
| Installation Site | Open terrain – ground mount |
| Foundation | Concrete bases,Ground screws |
| Installation Angle | 0-60° |
| Wind Load | 60m/s |
| Snow Load | 1.6KN/m2 |
|
Ground
Clearance |
500-2000mm |
| PV Modules | Framed, unframed |
| Module Orientation | Portrait or landscape |
| Standards | AS/NZS 1170 |
| |
DIN 1055 |
| |
JIS C 8955：2017 |
| |
International Building Code IBC 2009 |
| |
California Building Code CBC 2010 |
| Materials | Al6005-T5(Anodized) |
| Fasten Parts | SUS304 |
| Small Components | Al6005-T5(Anodized) |
| Color | Silvery or according to customer requirements |
| Warranty | 10 years |
Components List
|
|
|
|
| Wide End Clamp Kit | U25 Inter Clamp Kit | C Clamp Kit | Rail 60 |
|
|
|
|
| Rail 105 |
GT Ⅵ Pre-Assembled Supports |
GT Ⅵ Pre-Assembled Supports B |
Angular Aluminum & T Bolt Kit |
|
|
|
|
| Splice for Rail 105 | Ground Screw |
Installation Guide
-
Locate the proper position for piling by wooden stakes.
-
Remove the stakes at the positions and pile Ground Screw.
-
Install GT Ⅵ Pre-Assembled Supports
-
Install Angular Aluminum & T Bolt Kit
- Install Rails
-
Installation the panels
-
The installation is complete.
Advantages
Pre-assembled Components Save Onsite Installation Time Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
No Drill on Horizontal Rails It improves the strength of the system to fix the rails onto the post by special designed clamps, with force at the same direction of the gravity.
No Portrait Beam Design Saving material cost, smaller package lead to lower packing and freight cost.
Flexibility of Foundations Match Suitable for ground screw piles, concrete foundation and steel foundation.
