Brief Introduction

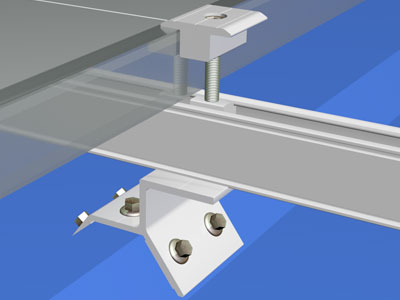

LRac Trapezoidal Metal Roof Clamp Solar Mounting System (with Rail) is applied to Trapezoidal Metal Roof commercial and industrial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost onsite.
Technical Parameters
| Installation Site | Pitched Roof |
| Roof Type | Trapezoidal Metal Roof |
| Installation Angle | 0-15° |
| Wind Load | 60m/s |
| Snow Load | 1.6KN/m2 |
| PV Modules | Framed or Frameless |
| Module Orientation | Portrait or Landscape |
| Standards |
AS/NZS 1170 |
| DIN 1055 | |
| JIS C 8955：2017 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Materials | Q235B(Hot-Dip Galvanized) & Al6005-T5(Anodized) |
| Fasten Parts | SUS304, Hot Dip Galvanized, Zinc-Nickel Alloy Electroplated Steel |
| Small Components | Al6005-T5 |
| Color | Silvery or according to customer requirements |
| Warranty | 10 years |
Components List
|
|
|
 |
| End Clamp Kit | Inter Clamp Kit | Trapezoidal picture |
Rail |
|
|
|
|
|
Clamp |
Hook Rail | Clamp 1 | Clamp 2 |
Advantages
Applicable for Different Metal Roofs Design project by project, selecting configuration of mounting system components flexibly
Save Installation Time and Cost Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost, lead to better RoI.
Compatible to Different Types of Solar Modules Compatible to most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.
