LRac Trapezoidal - Clamp without rail

Brief Introduction

LRac Trapezoidal Metal Roof Clamp is mainly applied to Trapezoidal Metal Roof, and its material is Al6005-T5. With its professional design, it can realize the perfect connection between roof support and roof to meet customer installation requirement. Professional solution and structure design can save your installation time and cost. Moreover, Patented and unique design can bring you a good installation experience.

Technical Parameters

Installation Site Pitched Roof
Roof Type Trapezoidal Metal Roof
Installation Angle 0-15°
Wind Load 60m/s
Snow Load 1.6KN/m2
PV Modules Framed or Frameless
Module Orientation Portrait or Landscape
Standards

AS/NZS 1170
DIN 1055
JIS C 8955:2017
International   Building Code IBC 2009
California   Building Code CBC 2010
Materials Q235B(Hot-Dip Galvanized) & Al6005-T5(Anodized)
Fasten Parts SUS304, Hot Dip Galvanized, Zinc-Nickel Alloy Electroplated Steel
Small Components Al6005-T5
Color Silvery or according to customer requirements
Warranty 10 years


Components List

1.jpg 2.jpg

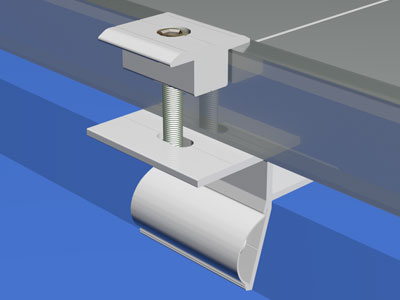

End Clamp Kit Inter Clamp Kit

Trapezoidal picture

Clamp


Clamp 8

Clamp 20

Advantages

Applicable for different metal roofs   According to customer requirement, choose different roof mounting system flexibly.


Save installation time and cost   Save the installation time and cost by offering installation manual and solution


Compatible to different types of solar modules   Free and flexible to choose different types of solar modules
