Brief Introduction

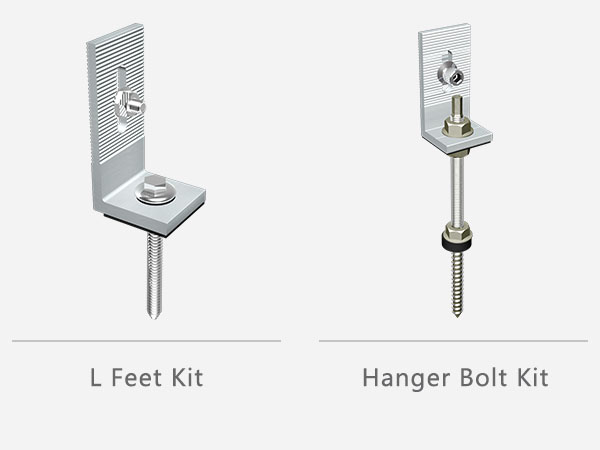

LRac L feet Kit and Hanger Bolt Kit are applied in most Corrugated Metal Roof commercial and industrial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design.
Technical Parameters
Installation Site | Pitched Roof |
Roof Type | Trapezoidal Metal Roof |
Installation Angle | 0-15° |
Wind Load | 60m/s |
Snow Load | 1.6KN/m2 |
PV Modules | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standards |
AS/NZS 1170 |
DIN 1055 | |
JIS C 8955:2017 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Materials | Al6005-T5(Anodized) |
Fasten Parts | SUS304, Hot Dip Galvanized, Zinc-Nickel Alloy Electroplated Steel |
Small Components | Al6005-T5 |
Color | Silvery or according to customer requirements |
Warranty | 10 years |
Components List
![]() |
![]() |
![]() |
![]() |

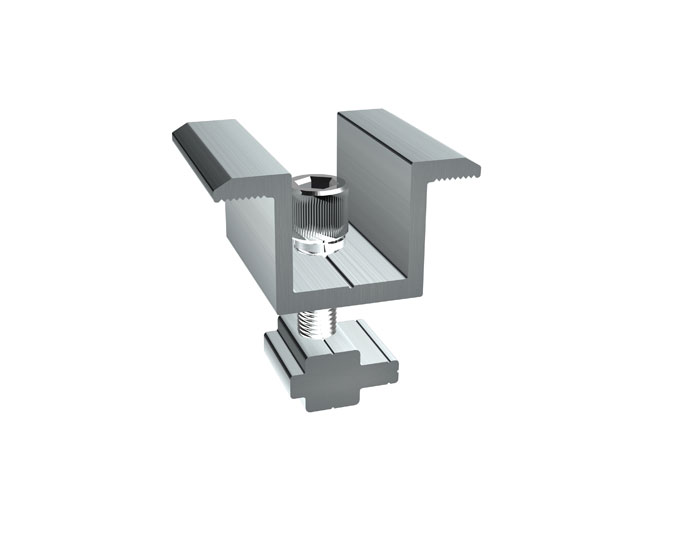

End Clamp Kit | Inter Clamp Kit | L Feet Kit |

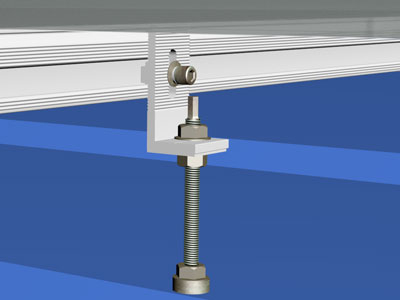

L Feet Kit Installation |
![]() |
![]() |
![]() |
|
Hanger Bolt Kit |
Hanger Bolt Kit Installation | Pro Standard Rail (Optional) |
Advantages
Pre-assembled kits save the installation time and cost on site.
