LRac Porcerlain Tile Hook

Brief Introduction

LRac Tile Roof Hook Solar PV Mounting System is applied tile roof residential and commercial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost onsite.

Technical Parameters

Installation Site Pitched Roof
Roof Type Porcerlain Tile, Flat Tile, Slate Tile, Asphalt Shingle Tile
Installation Angle 5-45°
Wind Load 60m/s
Snow Load 1.6KN/m2
PV Modules Framed or Frameless
Module Orientation Portrait or Landscape
Standards

AS/NZS 1170
DIN 1055
JIS C 8955:2017
International   Building Code IBC 2009
California   Building Code CBC 2010
Materials Al6005-T5(Anodized)
Fasten Parts SUS304, Hot Dip Galvanized, Zinc-Nickel Alloy Electroplated Steel
Small Components Al6005-T5
Color Silvery or according to customer requirements
Warranty 10 years


Components List

1.jpg 2.jpg 6.jpg

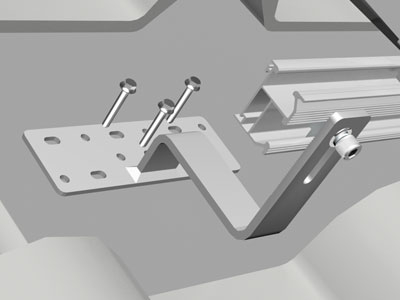

         End Clamp Kit      Inter Clamp Kit Tile Hook

Rail


Tile Hook3

Asphalt Shingle Hook H75 Flat Tile Hook H132 Slate Hook H60

Advantages

Applicable for Different Metal Roofs   Design project by project, selecting configuration of mounting system components flexibly


Save Installation Time and Cost   Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost, lead to better RoI.


Compatible to Different Types of Solar Modules   Compatible to most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.
