Brief Introduction
Adjustable Tripod Support
Technical Parameters

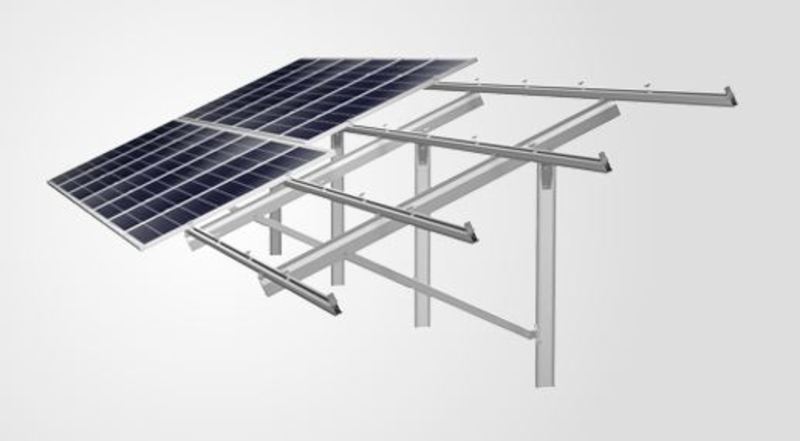

LRac Roof Matrix II (RM II) is an aluminum flat roof solar mounting system. The triangle structural design guarantees the stability while ensuring fast and convenient installation of solar modules. The RM II could be designed to support one or two rows of solar modules on portrait or landscape orientation, which will adapt to various roof surfaces or specified requirements.
Advantages
| Installation Site | Flat rooftop |
| Installation Angle | 5-60° |
| Wind Load | 80m/s |
| Snow Load | 1.6KN/m2 |
| PV Modules | Framed,unframed |
| Module Orientation | Portait and Landscape |
| Standards | AS/NZS 1170 |
|
|
DIN 1055 |
|
|
JIS C 8955：2011 |
|
|
International Building Code IBC 2009 |
|
|
California Building Code CBC 2010 |
| Profile Material | Al6005-T5(Anodized) |
| Fasten Parts | Stell(Darot) |
| Small Components | Al6005-T5(Anodized) |
| Color | Silvery or according to customer requirements |
| Warranty | 10 years |
